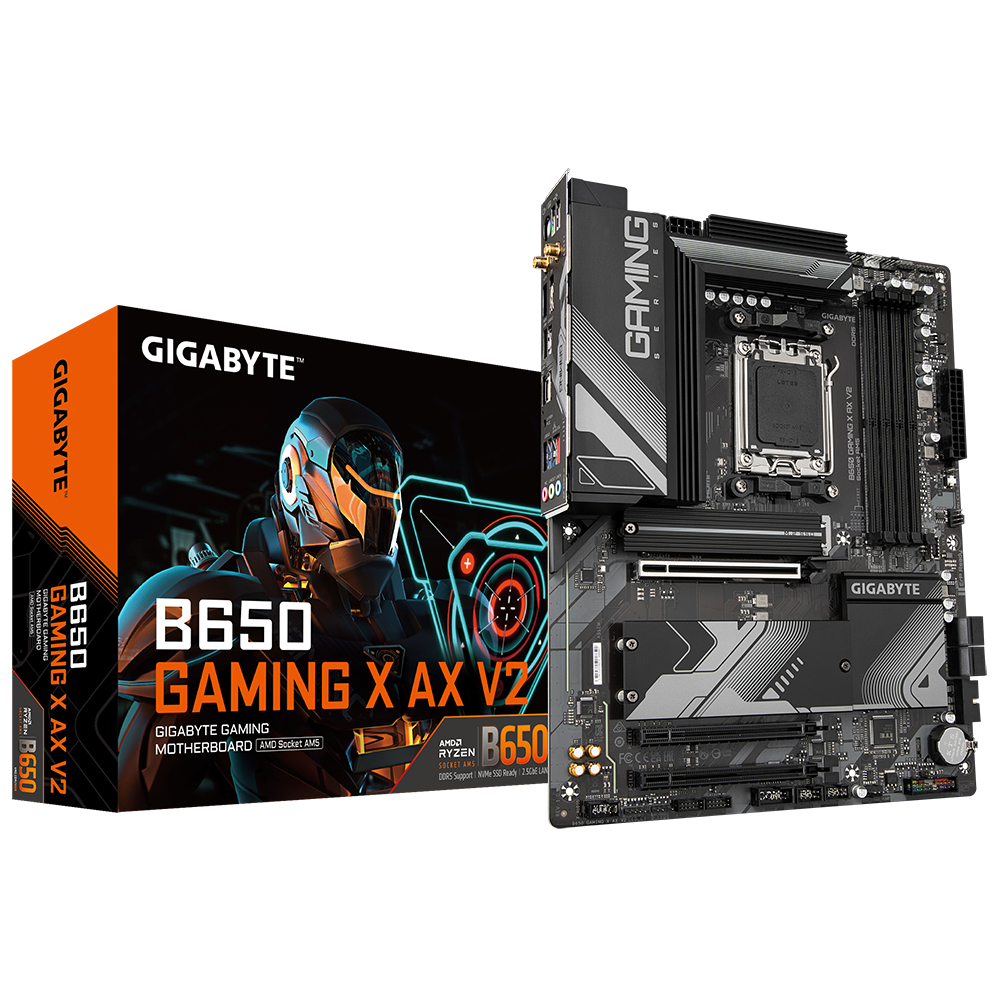

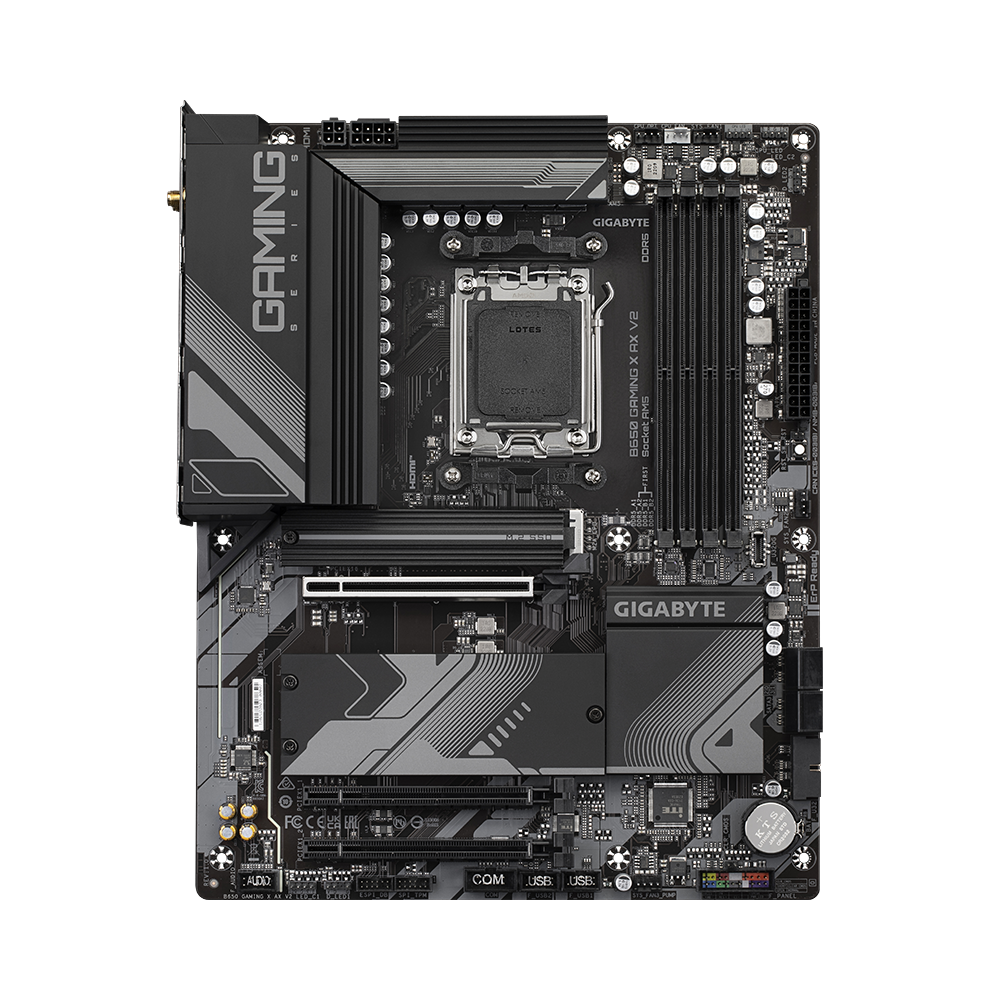

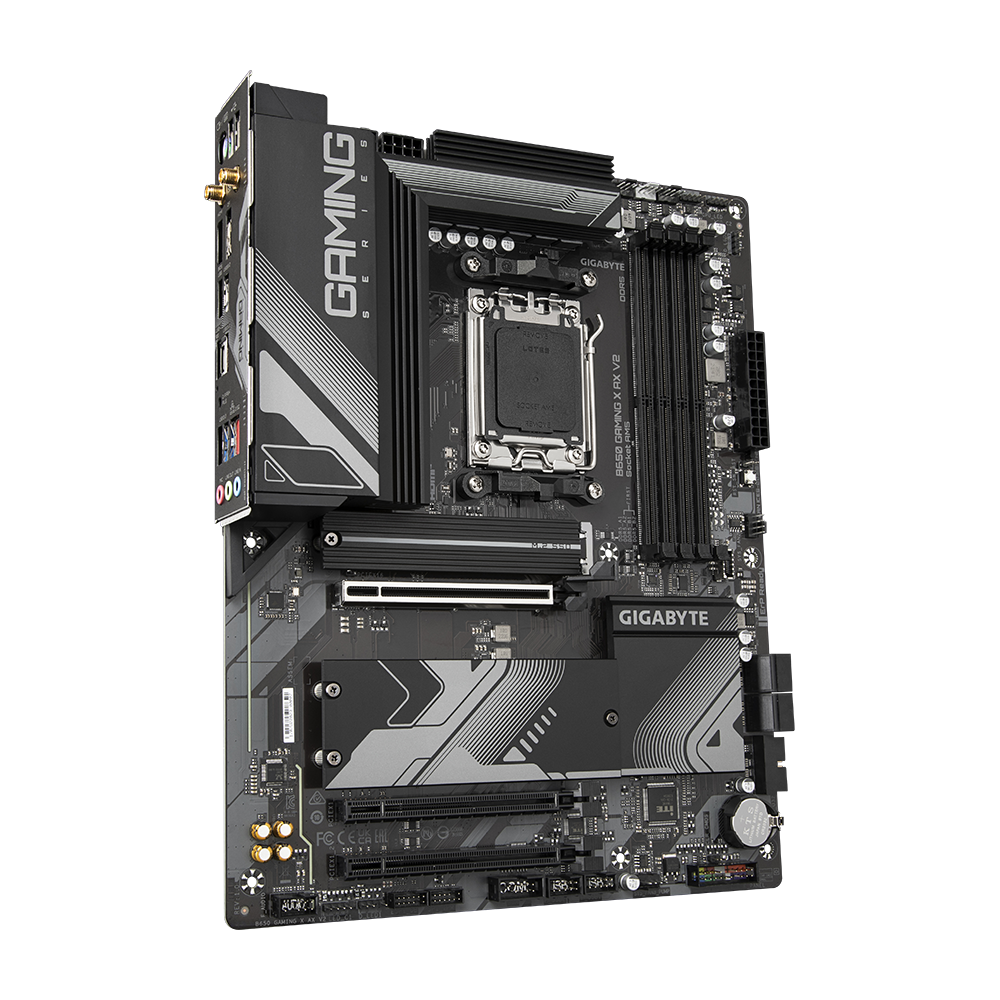

Motherboard GIGABYTE B650 GAMING X AX V2, Socket AM5
In Stock
Motherboard GIGABYTE B650 GAMING X AX V2, Socket AM5 – garancion 36 muaj.
Përshkrimi
Array
Informacione shtesë
| Weight | 1,95 g |
|---|---|
| Brendi | GIGABYTE |
| Modeli | B650 GAMING X AX V2 |
| EAN | 4719331860073 |
| Garancion | 36 muaj |
| CPU Socket | AM5 |
| Chipset | AMD B650 |
| CPU supports | AMD 7000 Series Processors, AMD 8000 Series Processors, AMD 9000 Series Processors |
| Memory Standard | DDR5 |
| Maximum Memory Supported | 192 GB |
| Number of Memory Slots | 4 |
| Frequency Memory | 8000(OC) MHz |
| Support Dualchannel | Yes |
| Integrated Audio | Realtek AUDIO CODEC |
| Integrated LAN | 1 x Realtek 2.5Gb Ethernet port |
| Integrated Wi-Fi | 802.11ax Wi-Fi 6E |
| PCI-E x16 | 1 x PCIe 4.0 x16 |
| PCI-E x1 | 2 |
| Interface Serial ATA | 4 x SATA3 6.0 Gb/s |
| M2 socket | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs |
| Raid support | NVMe RAID 0/1/5, SATA RAID 0/1/5/10 |
| Power Connector | 1 x 24 pin ATX Power Connector, 1 x 8-pin ATX 12V Power connector, 1 x 24-pin Main Power connector, 1 x 4-pin +12V Power connector |
| Connectors | 1 x HDMI port, 1 x Display Port, 1 x RJ-45, 3 x Audio jacks, 1 x Q-Flash Plus button, 2 x SMA antenna connectors |
| USB Ports | 1 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen2 Type-C, 3 x USB 3.2 Gen 1, 3 x USB 2.0 |
| Dimension | ATX – 30.5 x 24.4 cm |
| Other | 256 Mb Flash ROM, UEFI AMI BIOS |
