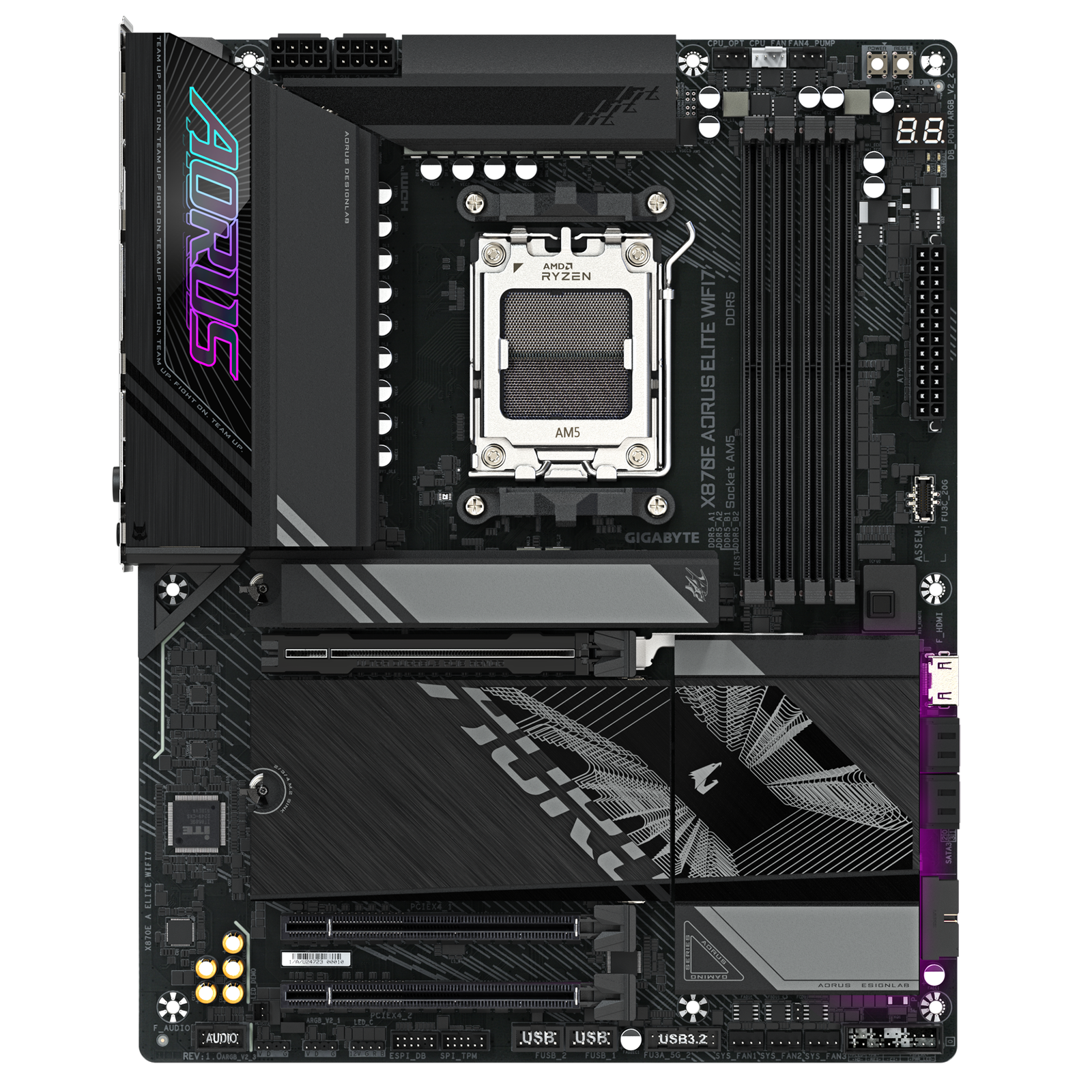

Motherboard GIGABYTE X870E AORUS ELITE WIFI 7, Socket AM5

Kodi: Vl_GA-MB-X870E-A-ELITE-WF7

Nuk ka stok

Kodi: Vl_GA-MB-X870E-A-ELITE-WF7 Kategoria: Motherboards

Motherboard GIGABYTE X870E AORUS ELITE WIFI 7, Socket AM5 – garancion 36 muaj.

Përshkrimi

Array

Weight	1,45 g
Brendi	GIGABYTE
Modeli	X870E A ELITE WIFI7
EAN	4719331864613
Garancion	36 muaj
CPU Socket	AM5
Chipset	AMD X870E
CPU supports	AMD 7000 Series Processors, AMD 8000 Series Processors, AMD 9000 Series Processors
Memory Standard	DDR5
Maximum Memory Supported	256 GB
Number of Memory Slots	4
Frequency Memory	8000(OC) MHz
Support Dualchannel	Yes
Integrated Audio	Realtek ALC1220
Integrated LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

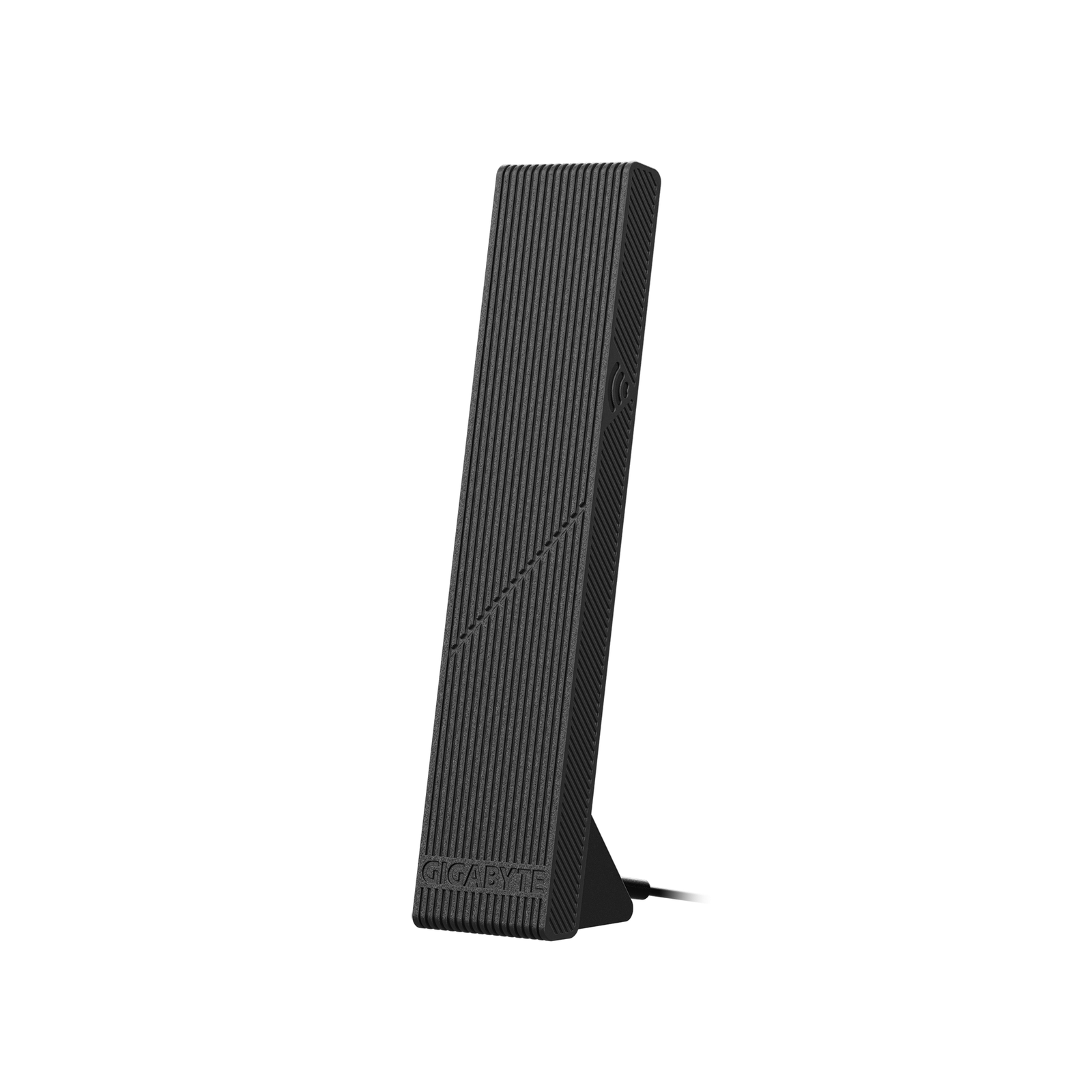

Integrated Wi-Fi	2×2 Wi-Fi 7 (802.11be), Bluetooth v5.4
PCI-E x16	2 x PCIe 4.0/3.0 x16 (x16, x8/x8), 1 x PCIe 5.0 x16 slot (supports x16 mode)
PCI-E x1	1
Interface Serial ATA	4 x SATA 6Gb/s
M2 socket	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSDs, 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
Raid support	0,1,10
Power Connector	1 x 24 pin ATX Power Connector, 2 x 8-pin +12V Power connector

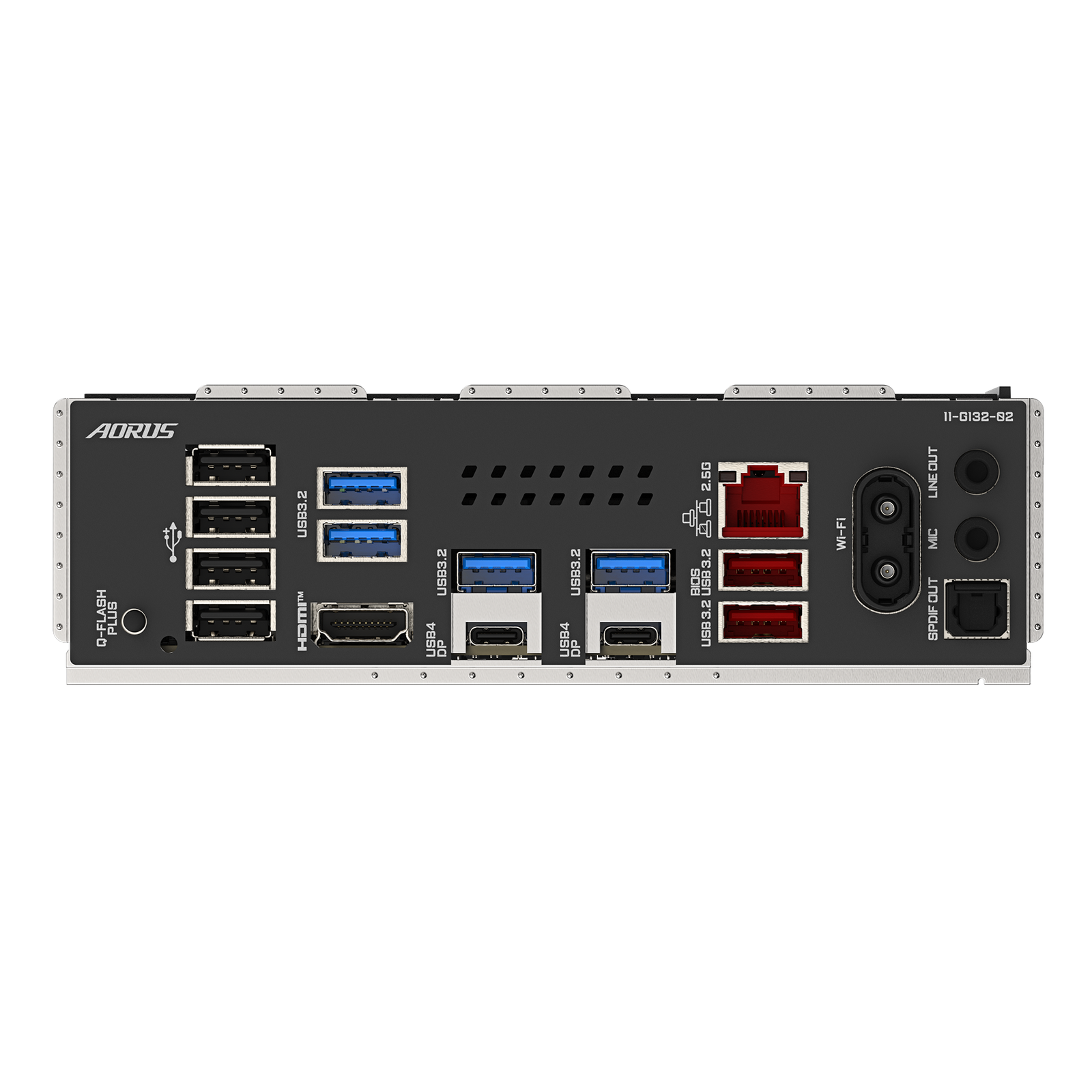

Connectors	1 x HDMI port, 1 x RJ-45, 1 x optical S/PDIF Out connector, 2 x Аudio jacks, 1 x Q-Flash Plus button, 2 x SMA antenna connectors
USB Ports	4 x USB 3.2 Gen 1, 2 x USB 3.2 Gen2, 4 x USB 2.0, 2 x Thunderbolt 4.0 USB Type-C
Dimension	ATX – 30.5 x 24.4 cm
Other	256 Mb Flash ROM, UEFI AMI BIOS
